COUNTING MACHINE, SHEET FED SOLUTIONS

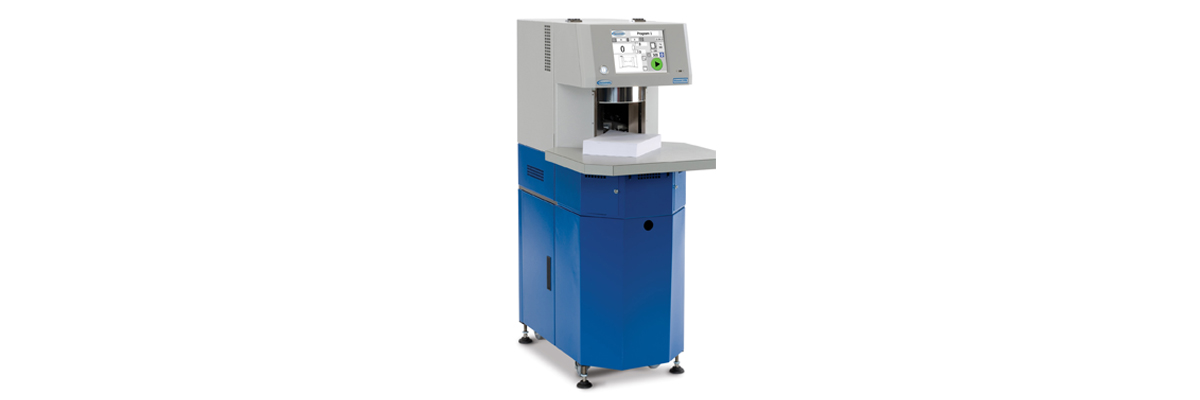

Vaccumatic - Vicount 3 Disc

Vicount 3 is Vacuumatic’s new generation of single head paper counting machines for the Security and Commercial Printing industries.

Vicount 3 is Vacuumatic’s new generation of single head paper counting machines for the Security and Commercial Printing industries. Drawing on over 50 years of experience, the Vacuumatic Vicount 3 is the new benchmark for accurate, efficient paper counting and batching.

Vicount 3 D is part of Vacuumatic’s latest generation of single-head paper counting machines for the Security and Commercial Printing industries. The Vacuumatic Vicount 3 D is the benchmark for accurate, efficient paper counting and batching. Disc counting technology was introduced to the last generation Vicount 2 from our high speed security paper counting range and developed to allow tab insertion. Our latest developments have resulted in a High Speed Disc version with counting of up to 10,000 sheets per minute using a new 10 port Disc. Tab Insertion is not possible using the High Speed Disc, however the machine can be purchased with both 5 & 10 port Discs our internal software will know what Disc is fitted to the machine and change the options for speed and Tab Insertion automatically. With the High Speed Disc we have also introduced another option that allows for packs of 100 notes to be counted very quickly, The 100 note adaptor clips quickly and easily into the machine making the Vicount 3 D without doubt the most flexible paper counting machine on the market..

Features:

Fast, accurate stack quantification

Non-contact counting technology

Counts a wide range of materials

Colour touchscreen

Flexible modular construction

Benefits:

Suitable for counting a wide range of applications and materials 25-240gsm

Accurate count results guaranteed

User friendly operation

Eliminates inconsistencies in batch quantities

Efficient to run, minimised downtime

Helps avoid ‘overs’ and ‘unders’

Technical Specifications

Specification Vicount 3 D
Counting technology Disc
Maximum counting speed*

5,000 spm

Maximum counting speed with tabbing* 3,000 spm
Count cycle time* 4-5 x 500 sheets in 60 secs

Maximum pile height

150 mm
Material weight range* 60-210 gsm (3 discs)

Batch size



5-9,999Airborne noise up to
Airborne noise up to

78dB(A)

Maximum total count 999999
Table format S 600 x 400 mm

Table format M

760 x 760 mm
Table format L 1060 x 760 mm (Airfloat)

Table format Industrial



2040 x 800 mm (Airfoat)

Electrical specification



230v/50Hz or 115v/60Hz

Net weight Approx.



Dependent on selected table format
